Story Editor — User Guide

The Story Editor is a Godot plugin built into the project. It displays a visual graph of all narrative scenes defined in the JSON files, directly inside the Godot editor — without modifying the game outside of explicit editing actions.

Activation

In Godot, open Project → Project Settings → Plugins
Enable Story Editor
A Story Editor tab appears at the bottom of the editor (bottom panel, next to the Output console)

Interface

+------------------------------------------------------------------------------+
| [Refresh]  [Reformat]                               11 scenes loaded         |
+------------------------------------------+-----------------------------------+
|                                          |  scene_04                         |
|  [> ch1_intro] --> [scene_01] --------> |  Contact  [Maeve         v]        |
|                         |               |                                    |
|  [! orphan]      [X scene_02]           |  Messages -------------------      |
|                                          |                                   |
|  [~ scene_03] - - - trigger - - - ->    |   Hello!                  [x]      |
|                                          |   +---------------------------+   |
|                                          |   | I'm writing from the     |    |
|                                          |   | train.                   |    |
|                                          |   +---------------------------+   |
|                                          |   pause    [medium  v]            |
|                                          |   requires [--      v]            |
|                                          |                                   |
|                                          |  Choices  ----------------        |
|                                          |   That's spam    -> [-- v] [x]    |
|                                          |   Yes, I hear you-> [-- v] [x]    |
|                                          |   [+ choice]                      |
+------------------------------------------+-----------------------------------+

Legend: [> id] = start scene · [! id] = orphan · [X id] = dead end · [~ id] = free input · - - -> = trigger connection

Refresh button: re-reads the JSON files and rebuilds the graph. Use it after editing any dialogue file manually. Edits made from the graph trigger an automatic refresh.
Reformat button: rewrites all JSON files with the canonical semantic key order, without changing any content. Useful for cleaning up a manually edited file or migrating an existing file to the standard format.
Graph (main area): nodes are draggable, zoomable with the mouse wheel, and navigable by holding middle-click or Space + drag.
Detail panel (right): clicking a node displays its full content. Message and choice text fields are directly editable.

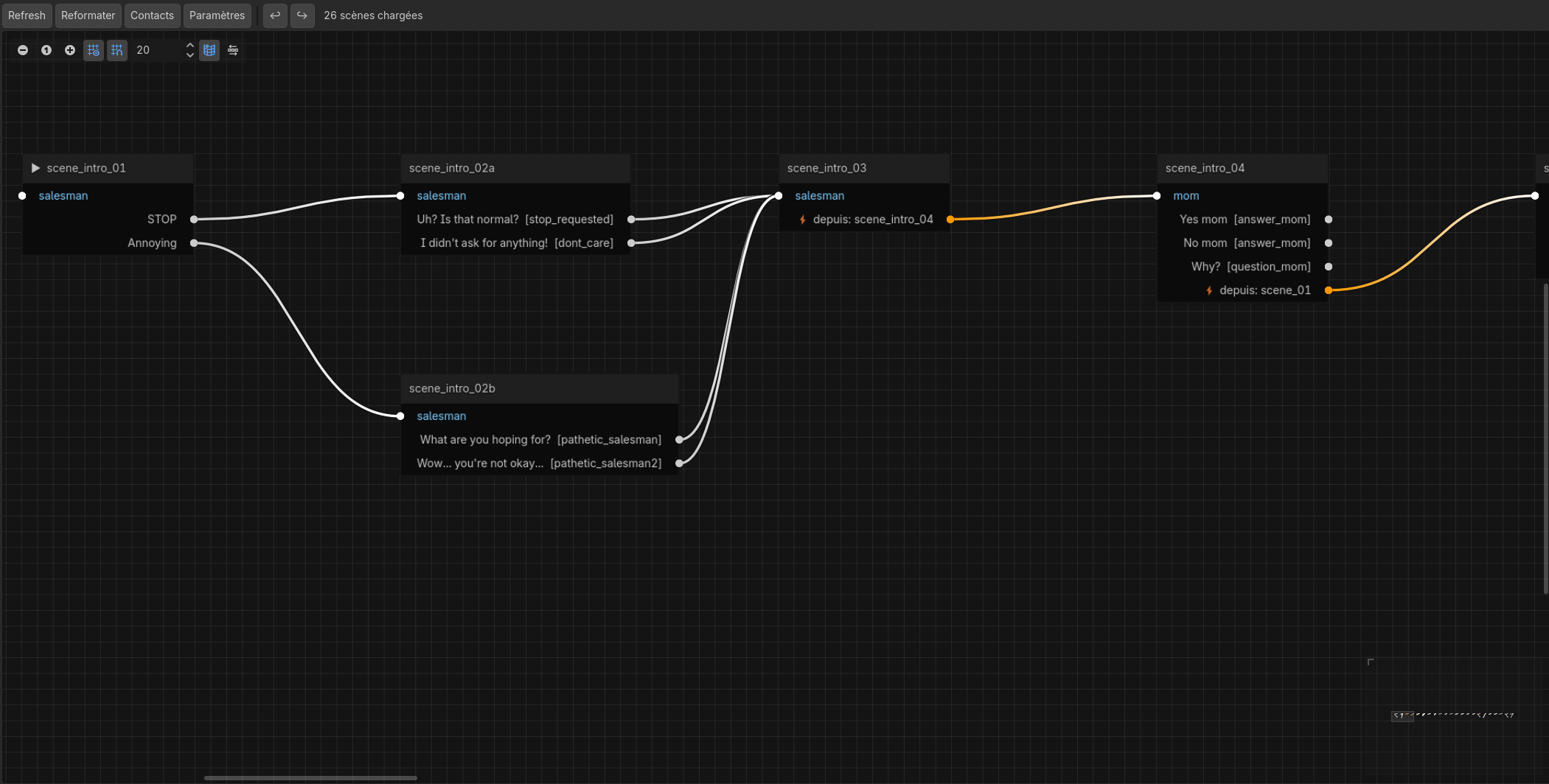

Graph Nodes

Each JSON scene maps to one node. The title of the node is the scene's id.

Visual Indicators

Indicator	Meaning
▶ before the ID	Starting scene (`start_scene` in `story.json`)
✎ after the ID	Scene with `free_input` (player types a free-text response)
⛔ Dead end (red)	The scene has no outgoing connections — likely an authoring oversight
⚠ Isolated (yellow)	No other scene points to this one — it can never be reached

Connection Types

Arrows between nodes are color-coded by their nature:

Color	Type	Description
Light gray	`next` or `choice`	Normal continuation or player choice
Orange	`trigger`	Automatic trigger via `trigger_after_scene`
Purple	`resume`	Conditional resume via `resume_after_flag`

Ports

Each node has: - One input port (left) — receives connections from preceding scenes - One output port per connection (right) — one per next, one per choice (choices[])

If a scene has choices without a destination (next absent), each choice gets its own output port — visible without a wire, ready to be connected. Dragging from that port to another node writes next into the correct choice.

If a scene has neither choices nor next, a → ? port is shown: dragging from it to another node will add a scene-level next field.

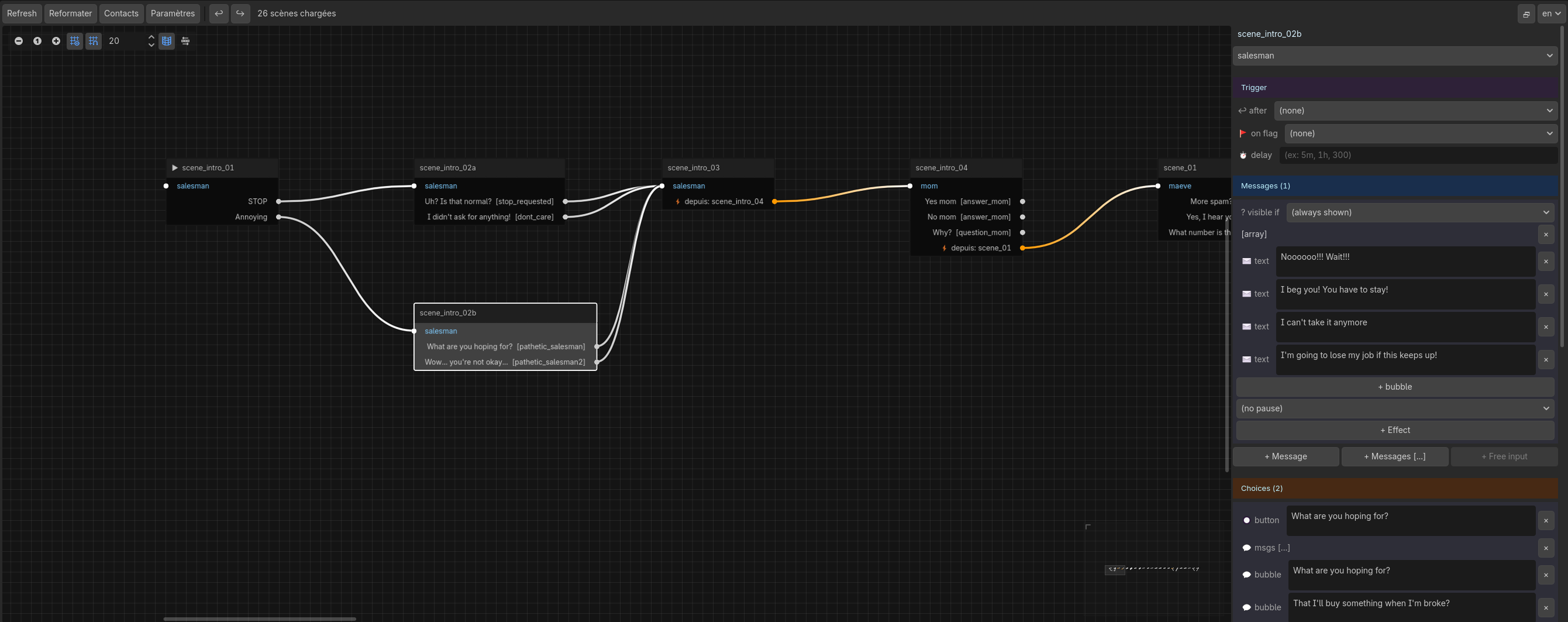

Detail Panel

The editor is a practical aid for writing scenes without touching JSON. It covers the vast majority of common use cases. Some advanced features (structured and/or conditions, media, deferred corrections, music) are only accessible via direct JSON editing — see What JSON Allows Beyond the Editor at the end of this document.

Clicking a node opens the detail panel on the right. All fields are directly editable and saved as soon as the field loses focus (click elsewhere or Tab).

Scene level

Field	Interface
Contact	Dropdown — all contacts in the project
`trigger_after_scene`	Scene dropdown — triggers when the selected scene has just played
`resume_after_flag`	Flag dropdown — waits in the background until this flag is set
`resume_after_delay`	Free text — accepts `300` (seconds), `"5m"`, `"1h"`
`free_input` (var)	+ Free input button → text field for the variable name
`free_input_placeholder`	Text field — hint text shown in the player's input field

Per message

Field	Interface
Simple text	Multi-line text area + × to delete
Array text (bubbles)	Each bubble editable separately + + bubble to add one
`requires_flag`	Flag dropdown — hides the message if the flag is not set
`pause`	Dropdown — `(none)`, `short`, `medium`, `long`
`effects`	One row per effect: op dropdown + target dropdown + value field + ×; + Effect to add

Per choice

Field	Interface
Button text	Multi-line text area + × to delete
`message` (player bubble)	Text field — what appears in the chat when the player picks this option
`flag`	Text field — flag set when this choice is selected
`requires_flag`	Flag dropdown — hides this choice if the flag is not set
`next`	Scene dropdown — scene played after this choice
`effects`	Same interface as message effects

Effects (`effects`)

Each effect has three fields:

Op	Target	Value
`set`	Variable dropdown	Value to assign
`add`	Variable dropdown	Value to add
`sub`	Variable dropdown	Value to subtract
`rename`	Contact dropdown	New display name
`set_status`	Contact dropdown	`online` / `away` / `offline` / `network_issue`

Free input vs Choices

free_input and choices are mutually exclusive: the engine ignores choices if free input is defined. The editor reflects this: + Free input is greyed out if choices exist, and + Choice is greyed out if free input is active.

Editing from the Graph

All edits are written immediately to the corresponding JSON file, then the graph is rebuilt automatically. No confirmation is required except for deletion.

Create a Scene

Right-click on the graph background (not on a node) → creation dialog:

ID: unique scene identifier (e.g. scene_10). If the ID already exists, creation is rejected.
Contact: dropdown listing all contacts defined in story.json.
File: if multiple JSON files exist in dialogues/, an extra dropdown lets you choose which file to write the scene into.

The scene is appended to the file with an empty message { "text": "" }. It appears in the graph with the ⚠ Isolated indicator until an incoming connection is created.

Connect Two Scenes

Drag from an output port (right circle of a node) to the input port (left circle) of another node.

If the output port corresponds to a choice, that choice's next field is written to the JSON.
If the output port corresponds to the scene-level next (or the → ? port), the scene's next field is written.
If the port already had a destination, it is replaced by the new one.

trigger and resume connections are read-only — they reflect JSON fields but cannot be modified from the graph.

Disconnect or Remove a Connection

Right-click on the source node → the context menu lists all active outgoing connections:

Delete this scene
─────────────────────
Disconnect: C'est du spam → scene_02
Disconnect: Oui, je vous reçois → scene_02

Clicking a "Disconnect" entry removes the corresponding next from the JSON (the choice or scene next remains but without a destination).

Delete a Scene

Right-click on the node → Delete this scene → confirmation dialog.

On confirmation: - The scene is removed from its JSON file. - All next and choices[].next fields pointing to this scene are removed across all JSON files in the project. - The graph is rebuilt.

Deletion is immediate and cannot be undone from the graph. Git is recommended for recovering accidental deletions.

What JSON Allows Beyond the Editor

The editor covers the vast majority of scenarios. The following features still require direct JSON editing:

Feature	Why JSON only
Structured `condition` (`and`/`or`/`flag`/`var`)	Complex boolean logic; `requires_flag` covers most cases
`media` (image bubble)	Shown read-only in the editor (📷 filename)
`edit` (deferred corrections)	The corrected text (`corrected_text`) is editable; type and delay remain read-only
`time` (message appearance delay)	Advanced, rarely needed
`music`	Advanced, rarely needed
`_notes`	Internal comments, ignored by the engine

After any JSON edit, use the Reformat button to restore canonical key ordering.

JSON Format Produced by the Editor

The editor writes JSON using a consistent semantic key order at three levels:

Scene:

_notes → id → contact_id → trigger_after_scene → resume_after_flag → resume_after_delay → messages_in → free_input → free_input_placeholder → music → next → choices

Message:

text → edit → effects → media → pause → requires_flag → condition

Choice:

text → message → flag → requires_flag → condition → next → effects

Messages and choices stay compact (one line per element). Indentation uses tabs.

The Reformat button applies this ordering to all existing files without changing any content — useful after a manual edit or migration.

Locale Support

The plugin reads dialogue files using the same locale logic as the game: - It prefers acte1.en.json if the system language is en, otherwise falls back to acte1.json - The locale used matches the OS language setting, not the in-game language setting

Architecture (for developers)

The plugin lives in addons/story_editor/ and does not touch any existing project file outside of explicit editing actions.

File	Role
`plugin.cfg`	Godot manifest (name, version)
`plugin.gd`	`EditorPlugin` — adds/removes the panel
`StoryEditorPanel.tscn`	Panel scene (`HSplitContainer[GraphEdit, ScrollContainer]`)
`StoryEditorPanel.gd`	Main logic: parsing, BFS layout, graph rendering, editing, JSON writing
`scene_parser.gd`	Standalone `RefCounted` — reads `story.json` + `dialogues/*.json` with locale support

scene_parser.gd is intentionally decoupled from dialogue_loader.gd to work in the editor context (game autoloads are not available inside a @tool plugin).

Scenes are written via _write_json(), which applies _ordered_scene() (semantic key ordering) then _json_expand() (custom serializer: expands to depth 3, compact beyond).
